Zack Birlew
Veteran
Just curious, has anybody tried this combination out yet? I've seen some beautiful work done on Flickr but I have yet to see much video done with this lens.

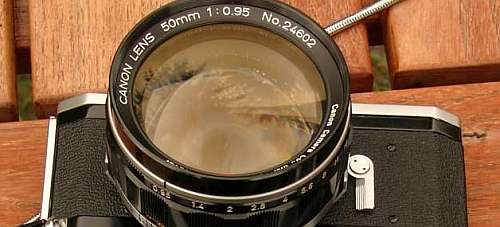

Canon 50mm 0.95 on GH1
- Thread starter Zack Birlew
- Start date
Steve Castle
Well-known member
There are some things to consider when using this lens with the GH1...
There are two versions of the 50mm f/0.95. One is made for the Canon 7 rangefinder bodies and the other is a "TV" lens. Both lenses are optically the same, however the "TV" lens aren't designed for the Canon 7 rangefinders and loses functionality when mounted to them (not much of a concern for a GH1 user).
What's important to consider for mounting these lenses on a GH-1 is the mount. The f/0.95 is designed for the unique external mount of the Canon 7 so you won't find any adapters for it.
There are two solutions for this, and they are both relatively simple:
1.) The first is to use a C-mount adapter. The "TV" lens came with a C-mount adapter (which also acted as a rear lens cap), and the same adapter also fits the normal lens as well; the adapter usually goes for around $60-100. From there you can just use the C-mount to µ4/3rds adapter to use this lens on your GH-1.
2.) The second method is to have a converted lens. The popularity of this lens means that there are a lot of Leica M mount conversions for this lens. The converted lenses tend to be more expensive online, but you can have any lens converted to an M-mount for around $150-200. From there you just use an M-mount to µ4/3rds adapter to fit the lens on your GH-1.
There are stores like this that do conversions :
http://www.camera-care.com/canon_f0_95_conv.htm
http://eastcamtech.com/CanonLens.htm
There are two versions of the 50mm f/0.95. One is made for the Canon 7 rangefinder bodies and the other is a "TV" lens. Both lenses are optically the same, however the "TV" lens aren't designed for the Canon 7 rangefinders and loses functionality when mounted to them (not much of a concern for a GH1 user).
What's important to consider for mounting these lenses on a GH-1 is the mount. The f/0.95 is designed for the unique external mount of the Canon 7 so you won't find any adapters for it.
There are two solutions for this, and they are both relatively simple:
1.) The first is to use a C-mount adapter. The "TV" lens came with a C-mount adapter (which also acted as a rear lens cap), and the same adapter also fits the normal lens as well; the adapter usually goes for around $60-100. From there you can just use the C-mount to µ4/3rds adapter to use this lens on your GH-1.
2.) The second method is to have a converted lens. The popularity of this lens means that there are a lot of Leica M mount conversions for this lens. The converted lenses tend to be more expensive online, but you can have any lens converted to an M-mount for around $150-200. From there you just use an M-mount to µ4/3rds adapter to fit the lens on your GH-1.
There are stores like this that do conversions :
http://www.camera-care.com/canon_f0_95_conv.htm
http://eastcamtech.com/CanonLens.htm
We'll see some footage with this lens eventually...
In the mean time I did a head to head of some 25mm F0.95 lenses that I own on the G1 @ 16:9. They are lots o fun:
Soligor hand held (iso 100 1/60")
In the mean time I did a head to head of some 25mm F0.95 lenses that I own on the G1 @ 16:9. They are lots o fun:
Soligor hand held (iso 100 1/60")
Last edited:
SonicStates
Well-known member
iso 100....wow. Looked at your comparison. The Soligor is pretty.
admactanium
Well-known member
We'll see some footage with this lens eventually...
In the mean time I did a head to head of some 25mm F0.95 lenses that I own on the G1 @ 16:9. They are lots o fun:
Soligor hand held (iso 100 1/60")
Upshot, which of those 25mm .95s do you prefer? I might be looking for something in that length for darkened room baby photos and obviously a lot of baby portraiture coming up. How are they to work with on the G1/GH1?
It's almost impossible to find but I prefer the soligar. I recently picked up the Kodak Cine Ektar 25mm F1.4 which is better @1.4 for sure and there is my Switar 26mm F1.1 which is also very very nice.
Out of all the 25mm c-mounts I've amassed... I'd put them in this order:
1. Macro Switar 26mm F1.1 (full sens coverage @ 16:9, Joy to use, exceptional performance, lovely bokeh)
2. Cine Ektar 25mm F1.4 (full sens coverage @ 4:3!!, easy to use, great performance, butter bokeh)
3. Soligar 25mm F0.95 (vigettes but my best @ F0.95 (from what I've seen the Berthiot 25mm F0.95 beats it though), little challenge to handle but not bad, great performance, decent bokeh)
4. Schneider Xenoplan 25mm F1.9 (full sens coverage @ 4:3!! easy to use after I did some modifications (focus grip), wonderful performance, so so bokeh)
It's tough... they all have characteristics to like. For example I have a Taylor Hobson Filmo 25mm F1.9 that gives the flattest field I've ever seen (full sensor coverage to boot) with a wonderful sharp vintage feel... but it' s really tough to handle and flares like crazy (which can be cool in it's own right!)
The 2 c-mount lenses I have both vignette:
Angenieux 12-120 mm 1:2.2 covers maybe 2/3 of the sensor
Cosmicar 12.5mm 1:1.4 almost full sensor coverage
I am still hunting for the right wide angle lens with 1:1.something below 4
any tips in the c-mount range that really cover the sensor?
Angenieux 12-120 mm 1:2.2 covers maybe 2/3 of the sensor
Cosmicar 12.5mm 1:1.4 almost full sensor coverage
I am still hunting for the right wide angle lens with 1:1.something below 4
any tips in the c-mount range that really cover the sensor?
Well I just listed some above :thumbsup:
but.. you'll find this list of interest... We've been compiling it for quite a while now!
Psynema
Well-known member
How does this compare to the canon/nikon 1.4 50mm aside from the higher aperture opening? i hear the 1.4 is more sharp, but they're all in the same price range...sorta.
So to get this straight, you'd have to get the TV version then a CMount adapter then a C to GH1 adapter?
So to get this straight, you'd have to get the TV version then a CMount adapter then a C to GH1 adapter?
admactanium
Well-known member
Do you know if the Schneider Xenon 25/.95 at B&H for CCTVs covers fully? I see it on the Google Docs list but so far I'm not sure I've seen anyone confirm or deny it's ability to be easily adapted and its sensor coverage. I've been doing a ton of research over at getdpi and rangefinders but I really want a lens that covers the sensor completely. If I'm going to start buying expensive lenses that need adapting (Angenieux, Switar, Canon .95, etc) then I might as well just buy the PanaLeica 25/f1.4.
I thought I'd really get into the adapted manual lenses thing but if they're not really covering the sensor then I'm not sure I feel like futzing around with it and getting machining done. Not knocking what you're doing. It looks like a blast, but I'm really looking for a more complete solution for a "normal" fast lens (ie, 20 to 25mm) for this camera.
Does anyone know about the Panny 20/f1.7? Is it just not going to happen?
Steve Castle
Well-known member
It's a very different lens compared to other Nikon/Canon primes. Its very soft wide-open, almost 'dreamy', which is fitting since they called it the 'Dream lens'. When stopped down its fairly sharp, but I wouldn't say as sharp as the modern Canikon lenses. The whole point of this rather large chunk of glass is that lens exceeds the perception of the human eye when used in available light photography. There are some samples Flickr samples posted previously in this thread, I would go look at that to see what type of photos to expect from this lens.
You have three-choices:
1.) Get the TV-lens (which came with a C-mount adapter). Then use a µ4/3rd to C-mount adapter to mount it on your Panasonic.
2.) Get the normal lens for the Canon 7 rangefinder, and buy a C-mount adapter that fits this unique mount and turns it into a C-mount, then use a µ4/3rd to C-mount adapter to mount it on your Panasonic.
3.) Buy either lens, and convert it to a Leica M-mount (links in my previous post) and then use a µ4/3rd to Leica M-mount.
Canon 50mm F/0.95 C mount adapter
I just got my first 0.95 (Xenon 17/0.95) and can't wait to try it out on the GH-1. I doubt it covers the frame so it'll be a 2x crop thing but still sounds like fun.
Question is, which ones to go after next?
Navitar's got a 25 and 50 for decent prices direct purchase.
The Canon is pretty expensive and so is the Angenieux.
Is the extra cost justifying any performance gains? At Wide Open apertures?
Question is, which ones to go after next?
Navitar's got a 25 and 50 for decent prices direct purchase.
The Canon is pretty expensive and so is the Angenieux.
Is the extra cost justifying any performance gains? At Wide Open apertures?
Solomon Chase
Well-known member
I've got the Navitar 50mm F0.95 adapted for my GH1. By far my favorite lens! It's sharp wide open, and has a really smooth look. I shot a lot of the night scenes in my questfest film "nightlight" with it... keep a look out. :beer:
No, it isn't so - look ... 100% light NEVER comes out! glass eats light

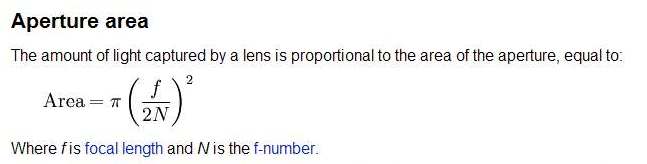

http://en.wikipedia.org/wiki/Aperture
or
N = ( f/2 ) * sqrt ( pi / A )
or
radius (aperture) = f / (2*N) = 5 / (2*0.95) = 2.6316 ... radius of max. aperture
then N = (5/2) * sqrt(pi / (r² * pi)) = 2.5 * sqrt (1/r²) = 2.5 * sqrt(1/2.6316²) = 0.95 :tongue:
.
.
http://en.wikipedia.org/wiki/Aperture
or
N = ( f/2 ) * sqrt ( pi / A )
or
radius (aperture) = f / (2*N) = 5 / (2*0.95) = 2.6316 ... radius of max. aperture
then N = (5/2) * sqrt(pi / (r² * pi)) = 2.5 * sqrt (1/r²) = 2.5 * sqrt(1/2.6316²) = 0.95 :tongue:
.
.
Last edited:
Have you ever tried a cine-nikkor 10mm?
