Output of DVX200

[Asaf Blasberg]

Hello,
Can the DVX200 output UHD 59.94 8-bit 4:2:2 via the HDMI port *and* record internally in UHD 59.94 8-bit 4:2:0?
I've seen a lot of confusing specs on this.
Thanks,
Asaf.



[7DDude]

Dual Recording

Dual Recording

Hello,
Can the DVX200 output UHD 59.94 8-bit 4:2:2 via the HDMI port *and* record internally in UHD 59.94 8-bit 4:2:0?
I've seen a lot of confusing specs on this.
Thanks,
Asaf.

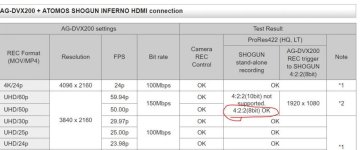

Not sure about Dual 4K recording, But here is some info that I think says you can dual codec record but, internal is Full HD. See images.



[Barry_Green]

Hello,
Can the DVX200 output UHD 59.94 8-bit 4:2:2 via the HDMI port *and* record internally in UHD 59.94 8-bit 4:2:0?
I've seen a lot of confusing specs on this.
Thanks,
Asaf.

No. The DVX200 can never output UHD 59.94 at 4:2:2. When at UHD/59.94fps, it's always 4:2:0.

Furthermore, the DVX200 cannot output UHD at all when it's recording UHD 59.94. When it's recording UHD 59.94, the HDMI output will drop to 1080p for the duration of the recording.

The DVX200 can output 4:2:2 at all other frame sizes and frame rates, but when using UHD 59.94 (and 50.00) it's always 4:2:0.



[Asaf Blasberg]

Hi Barry, thanks for your email. Love your Ebook Question, on Panasonic's website, it says 8 bit 4:2:2 "OK", not sure if "OK" means you can send the signal out in 4:2:2, or you can send a signal, period?
