My dolly

[asm]

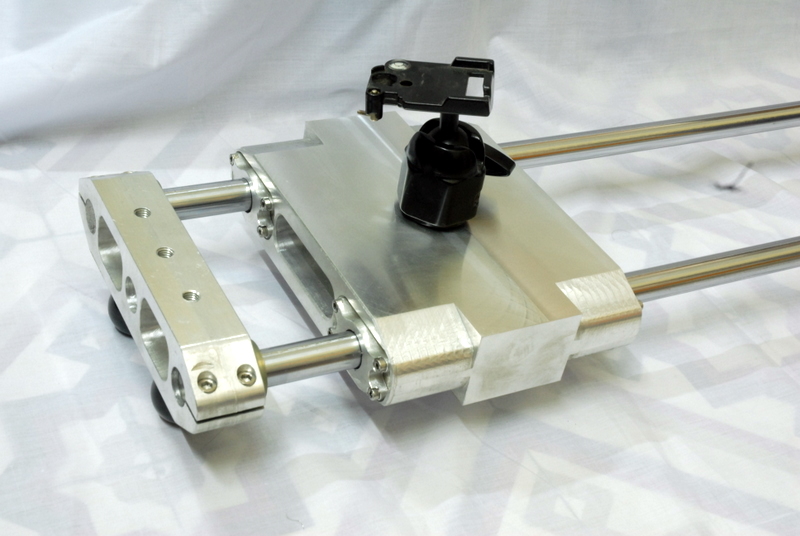

Hi all , I'm from Viet Nam , I'm not professor in film make but professor in machinist :grin: My friend request to make for him some kind of dolly ,through dvxuser I do some

Dolly with 2m , max load in center > 25kgs for Betacam, I daughter test for me with 28kgs:thumbup:

and 1.2m ,1.5m with 10Kgs max load in center for DSRL



All they run with ball bearing and Chrome coating rod hard and strong .they force dolly slide with soft and smooth :grin:



[David G. Smith]

Very nice.



[yrpfilms]

Those look great. With the roller bearings, how much noise is there?



[tampawolf]

you should make these and sell them, I'd be interested! Also if you know of a way to make a follow focus I'd be down to buy a custom one



[Dangerpays]

Very nice. One of the nicest DIY dollies I've seen yet. Make them and sell them, you'll do VERY well.



[asm]

Thank all , You right ball bearing when run in dry and move fast you will hear noise . when run with grease noise reduce of course I installed the seal to keep grease in side bearing only if not rod will dirty too much.



and test with 10LBS rod non curve


moving test

@tampawolf: I will send a 1,2m (4 feet) to my guy in Fort Myer FL next month, I see your nick " Tampa" and I guest your home close with him . and you can try this dolly



[stip]

That looks really great!!



[Postmaster]

I would like to have a 1.2 m but for 25 kilo load.
How much is the shipping to Germany?

Frank



[Baddgsx]

wow , that is ultra smooth!!!! great work!!!!



[asm]

Thank again for your comment . I just ask the shipping agent for shipping cost to USA ~120usd and Germany 110usd 1.2m dolly net weight 5.5Kgs packing 2Kgs. I forgot to tell you , 1.2m dolly pack in leather case , Now in my friend to make, when done i will take some picture with complete set.

http://www.dvxuser.com/V6/member.php?31135-Postmaster@ Postmaster : 1.2 mm max load up to 15Kgs with 14mm chrome rod , if you want to order 25kgs max load . I will use 20mm rod with double cost 1.2m and shipping cost will be raise . Another solution is I will mix 14mm rod and 20mm rod 1.2m length, I think this will be great



[ryan brown]

Very smooth = VERY nice. Great job



[Logan LeBlanc]

You should think about selling just the feet and carriage. I imagine the rails suck up most of the shipping cost and the buyer can get those heres in the states. Much easier for you to ship it to!

Just a thought : )



[asm]

thank for you advice , I will try some way



[asm]

ball bearing , very smooth when roll , but they make noise and can not record in live. I think must be have some thing to isolate ball and rod , grease is good but still noise, new crazy project is ball bearing with lubrication liquid hope they will more active to cancelling noise



[asm]

all done my gun with 2m (6.5 feet ) long :lol: :lol:

stand up for store



[Baddgsx]

can you make a 100mm bowl high hat for this combo? if so i would totally purchase one of these.



[srigby]

How much would you charge for the slider and end pieces (minus the rods, I assume they are standard and I could purchase them in the states) ?



[asm]

@Baddgsx : Can you give me details off 100mm Bowl high hat, I can cut bowl but must have specification . @Srigby : Rod I imported from Taiwan for Hydraulic equipment . I don't know US but I think hard to find because almost rod made in ASIAN or India for cheap .

I just see this web for Rod , Can you ask them http://www.teamtubellc.com/en/products/round-bar-products/chrome-plated---cpo.aspx



[Baddgsx]

http://www.indisystem.com/productimage.php?product_id=92&current_image=6 like this
or thishttp://www.adorama.com/AGHH100B.html?utm_term=Other&utm_medium=Shopping%20Site&utm_campaign=Other&utm_source=gbase

you should make your own configuration for a 100mm system which is the standard for the big rigs



[asm]

clamp for camera tool

Upgrade glide to movement with belt :shocked:
