Hello


Before I show you what I made ​​last week in my hobby workshop, let me explain a few things. I'm a cameraman in Austria in a private channel. Since the work is unfortunately not varied, I began several years ago to be interested in tools. The final consequence to me was buy a workshop in which I own a lathe and a milling machine.

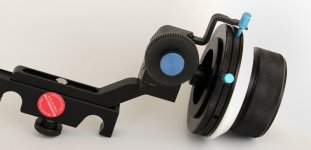

So last week, a colleague came to me and asked me if I can rebuild his follow focus for his ENG camera.
The problem was that I did not know which module the size of a Canon zoom ring gear has.

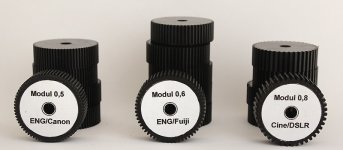

Meanwhile, I'm so smart and have already made ​​these gears in Pom plastic.

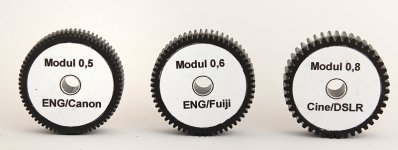

The diameter of all the gears is 36 mm.








I hope you like it and thanks Google translater



[charlierubi]

Hi, congratulations!

How did you do them? I might have access to a laser cutter and a 3D printer, which method would you recommend?

How thick are they? Have you got the plans?

Congrats again?



[charlierubi]

Ups!! I meant congrats again!



[Plexxart]

Hi, congratulations!

How did you do them? I might have access to a laser cutter and a 3D printer, which method would you recommend?

How thick are they? Have you got the plans?

Congrats again?

Hi
Thank you for your positive Response !

I done it with a Milling Machine and old fashioned analog. Here one more Picture of the Production.



If you want to do it per CNC, there exists in the Web a program which generate a DXF File for cutting Gearwheels
Here is the Link
http://www.megacad.ch/neu/wb/modules/download_gallery/dlc.php?file=61

Greetings



[charlierubi]

Thanks a lot! I'll have a look.

Greetings



[Plexxart]

Greetings

A little update for members whose interesting on that gears. Last week I adapt for a cameraman his old Nikon Primes with some Gear Rings.



Close Up:



The Rings without Lens:



When you want some gearings for your own, please contact me here
Greetings
W.T.



[caponieusa]

what material did you make the gears out of?



[Plexxart]

what material did you make the gears out of?

As i wrote in the first post:

Meanwhile, I'm so smart and have already made ​​these gears in Pom plastic.



[Richard Crowley]

From what I can gather at http://en.wikipedia.org/wiki/Polyoxymethylene, "POM" is also known as "Delrin" (a popular plastic for gears in the US), and "Hostaform/Celcon" in Europe.



[Plexxart]

From what I can gather at http://en.wikipedia.org/wiki/Polyoxymethylene, "POM" is also known as "Delrin" (a popular plastic for gears in the US)

Thank you for the Link Richard !

The Reason why this Material ist very popular for gearsmaking, is that POM has very good Sliding properties. A Combination of Alu to Alu is not so good.
So the most FollowFocus drive wheels are made with POM and the Lensgears on Cine Optics are in Aluminium.

But I can also made some gearwheels in Alu, this one is wider than the normal one:
